Demonstration of the parts that are used for the GPS equipment, with or without pressure sensor.
| Description | Quantity |
| "J" ANGLE BRACKET | 1 |
| CENTRAL RADIO SUPPORT - CORRECTED | 1 |
| ZINC PLATED METRIC HEX SCREW M6X20MM | 4 |
| Hex screw M10x30mm | 2 |
| ZINC PLATED METRIC HEX NUT M6 X 1.0 | 4 |
| Hex nut M10 | 2 |
SmartConnect GPS Support
| Description | Quantity |
| "J" ANGLE BRACKET | 1 |
| D Clamps | 2 |
| ZINC PLATED METRIC HEX SCREW M6X20MM | 2 |
| Hex screw M10x30mm | 1 |
| ZINC PLATED METRIC HEX NUT M6 X 1.0 | 2 |
| Hex nut M10 | 1 |
| Phillips pan head screw M5x12mm | 2 |
| Nut M5 |
2 |
Nexus GPS Support

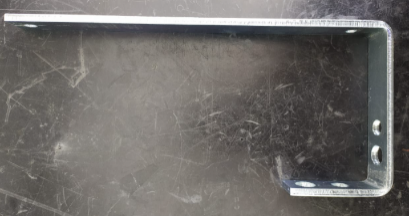

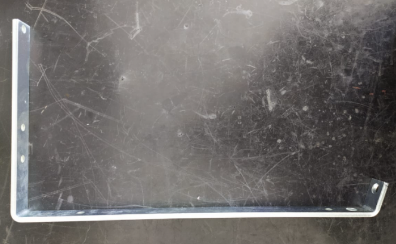

"J" Angle Bracket Central Radio Support
Hex Screw M6x20mm Hex Nut M6

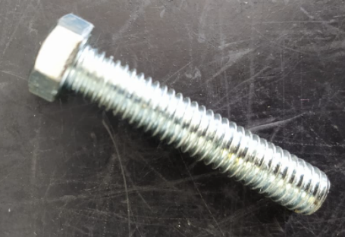

Hex Screw M10x30mm Hex Nut M10
Pan Head Screw M5x12mm Hex Nut M5

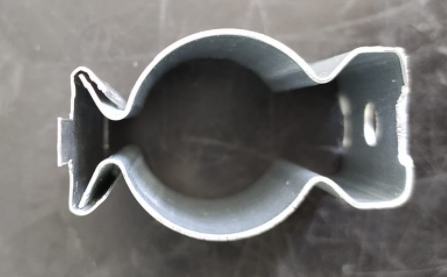

D Clamps
Follow the assembly instructions for the supports:
