How does Nexus Support work?

1 - Product components

Before starting the installation, check if all the items are included inside the product box. Nexus support is composed of the following components:

1. 01 Tube;
2. 02 Tube supports (Angle brackets);
3. 03 U Clamps;
4. 03 Nuts M8;
5. 03 Screws M8;

2 - Installation

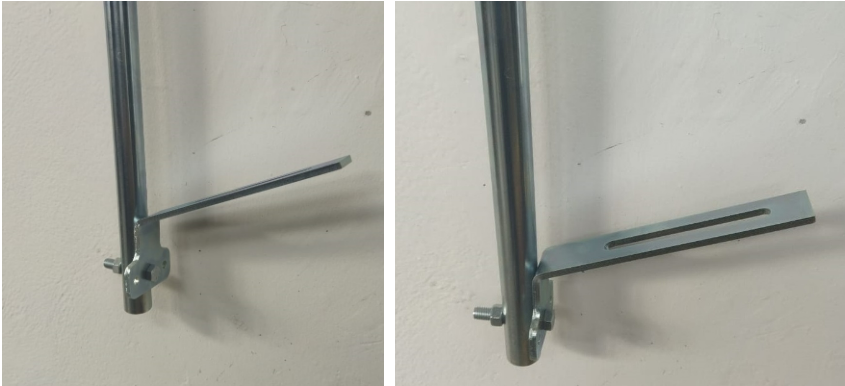

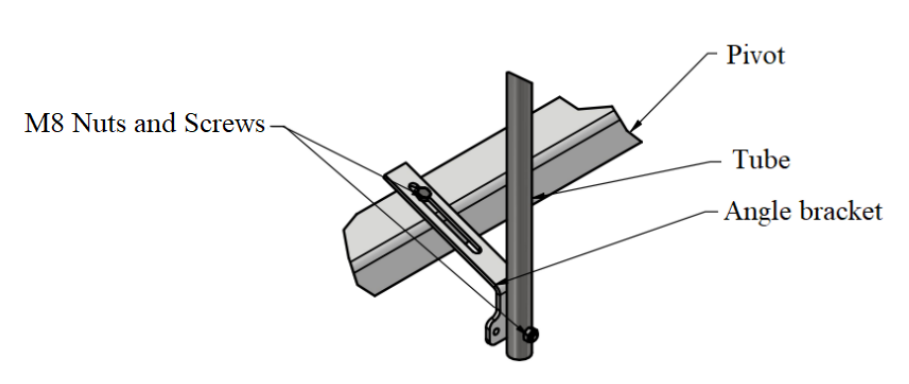

The tube hole is used as a reference for the lower angle bracket. The tube with the angle bracket must be fixed through the hole at the end of the tube using M8 nut and screw, as shown in the following pictures.

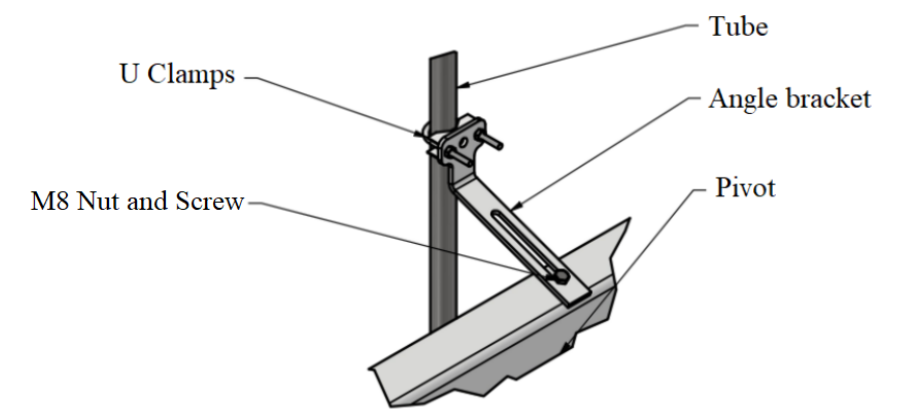

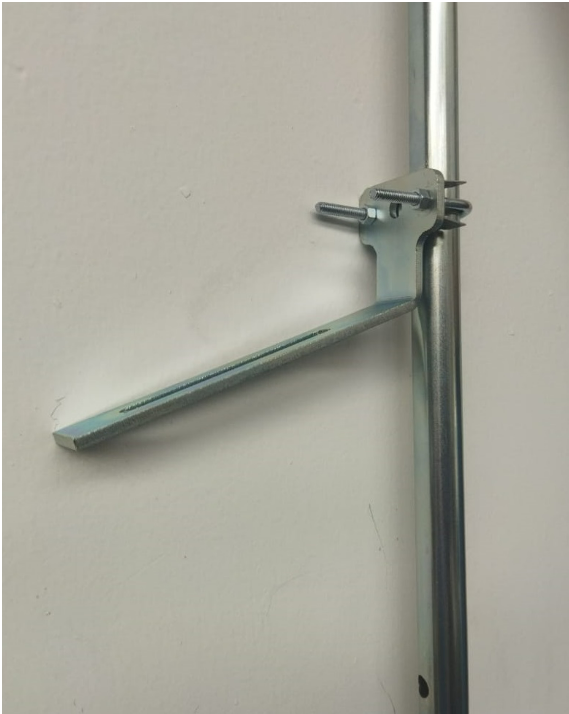

For the upper angle bracket, we will use U clamps to fix the tube. It won't be necessary to make any hole, since the clamps fix the tube on the outside. To secure the angle bracket to the pivot, it must be used M8 nuts and screws. The following pictures show how this installation should be done.

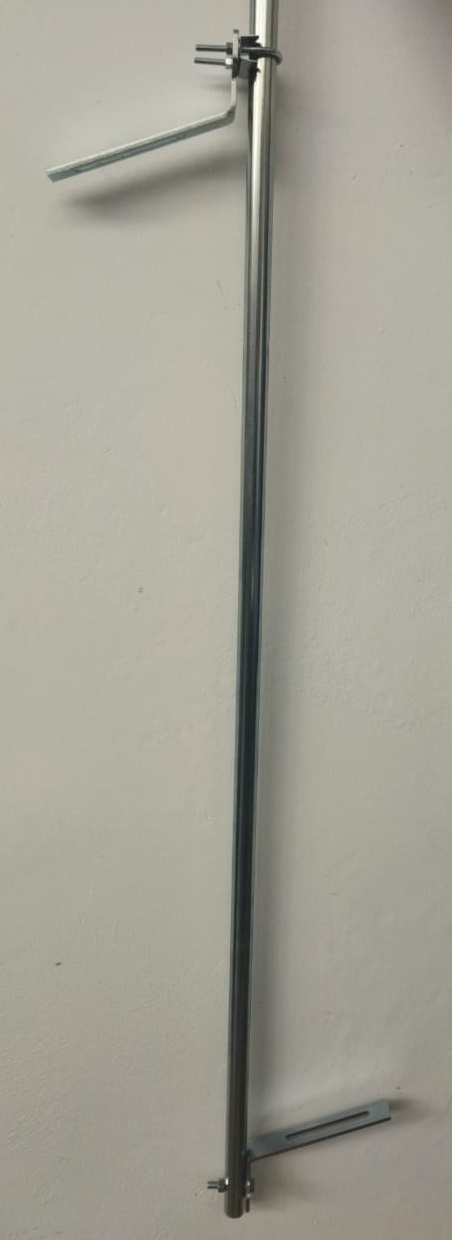

When the installation of the angle brackets is finished, the bracket must look like the picture below:

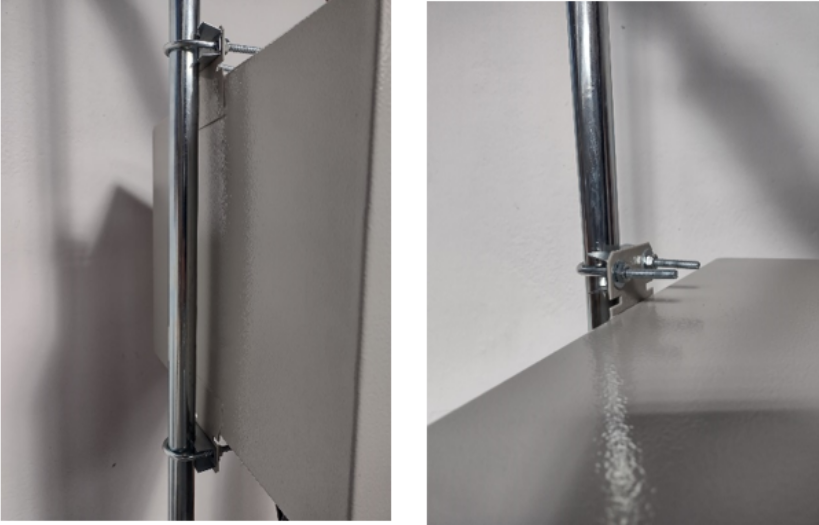

Finally, insert the U clamps into the tube with the Nexus G2 and tighten them once the height of the equipment has been adjusted for the operator.
