Switching Controllers is useful to diagnose problems or even to make a pivot operate when it is necessary to irrigate. To switch it, you need to know about the versions of the Controllers that you have in the Farm, since the exchange must be performed between equal Controllers. The latest version released was Controller G2 and this is the version that is currently produced for exportation.
Follow the step-by-step below to swap the controller:
01 - Turning off the Panel's power
02 - Disconnecting the Terminals
03 - Removing the Controller's Latches
05 - Switching the Controllers
06 - Installing the New Controller
01 - Turning off the Panel's power
At first, it is necessary to turn off the Panel's power, to do so, turn off the Panel's internal circuit breaker. Learn how to do this by following the type of Panel shown below:
SmartConnect

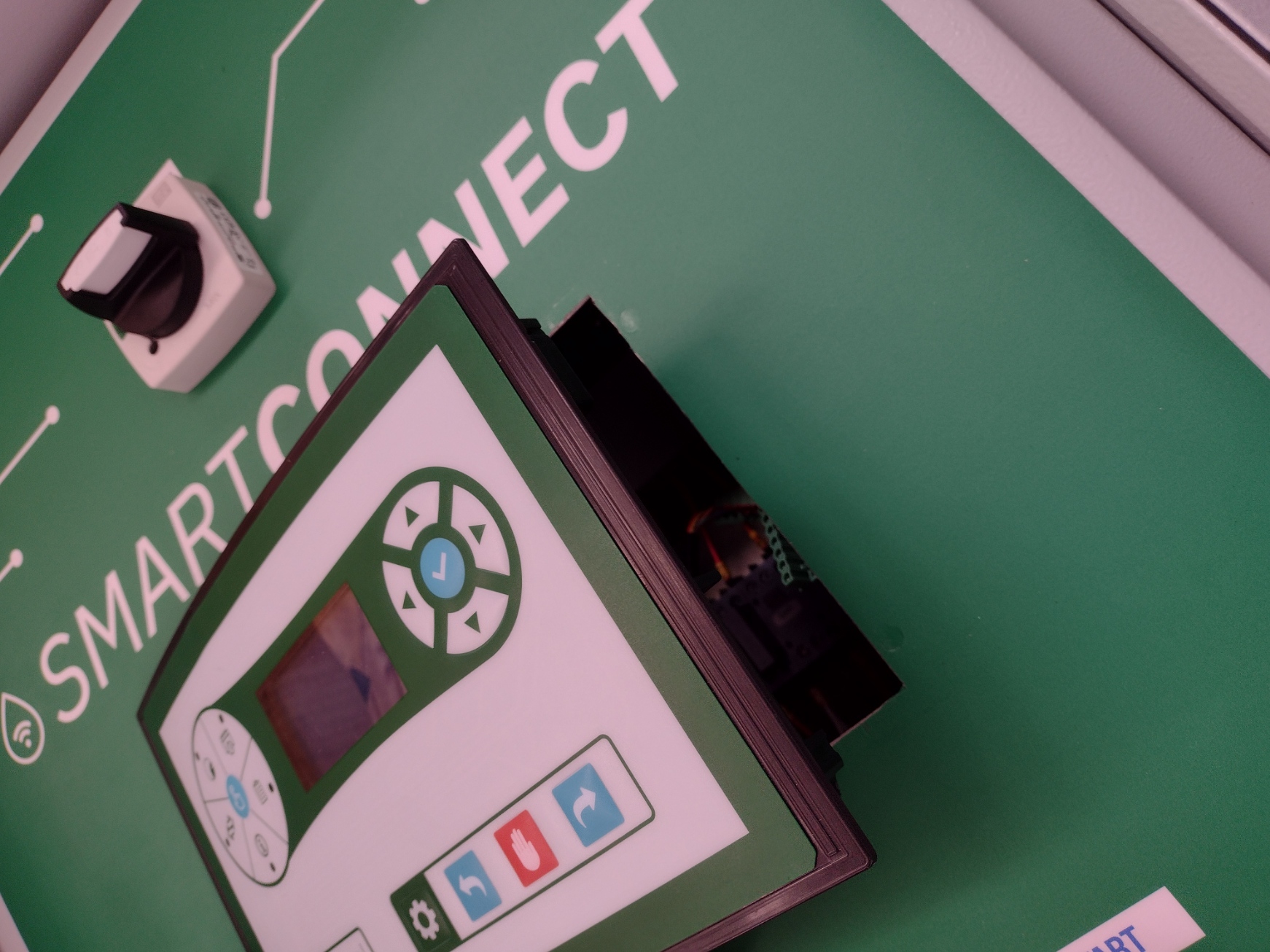

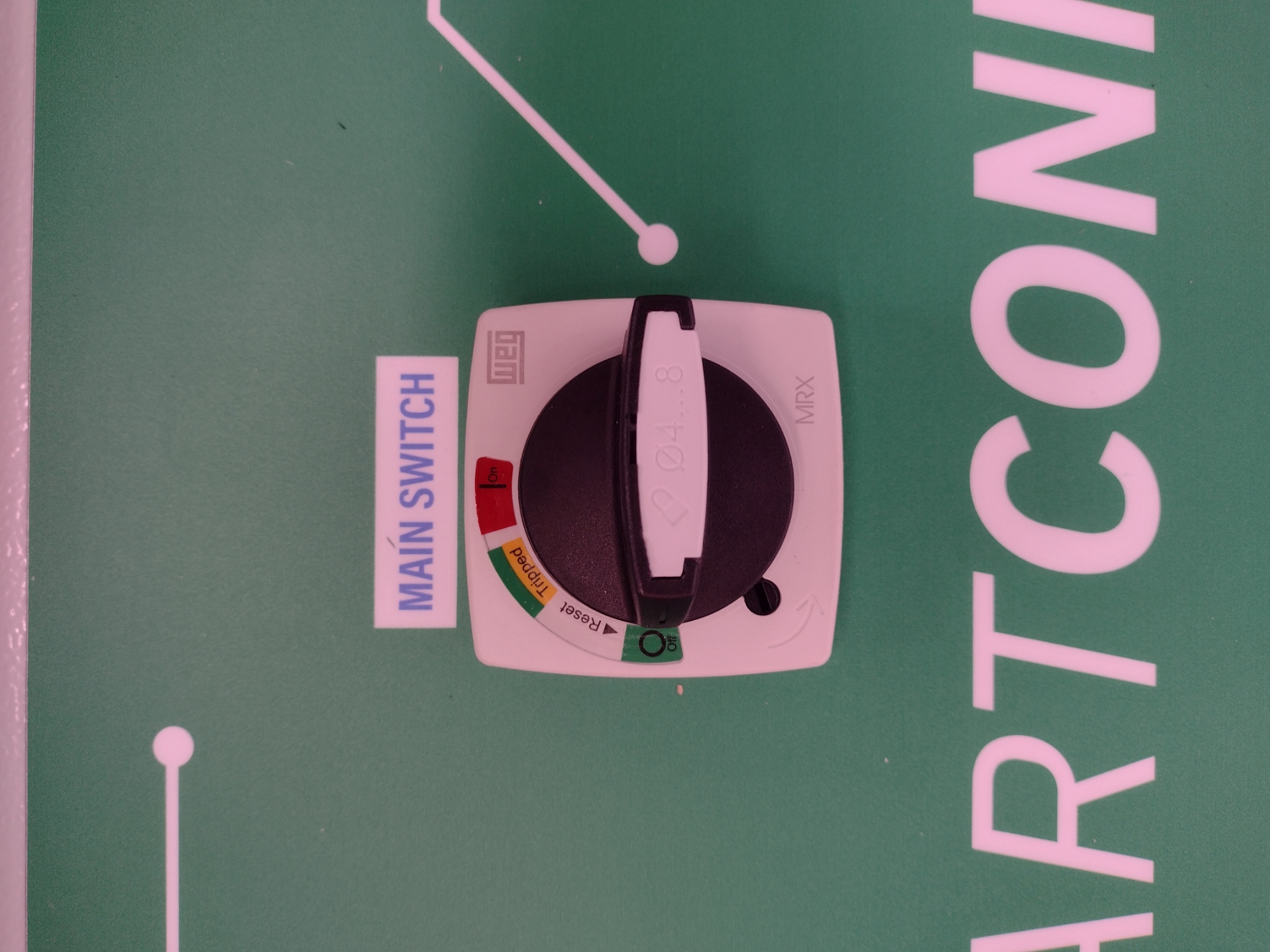

Turn off the panel's main switch. That way, the Controller will turn off showing that there's no energy in the Panel. By turning the main switch off, both the analog and digital modes will be off, that is, the panel will no longer have power.
Main Switch off Main Switch on
Nexus

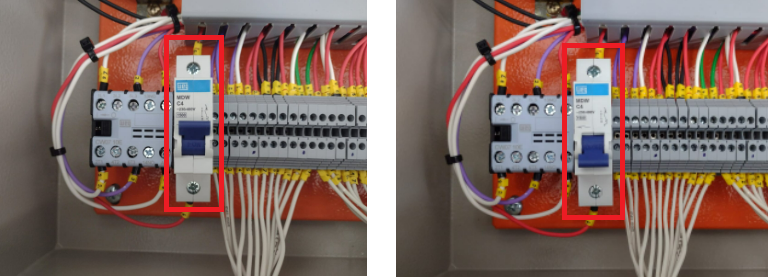

Circuit Breaker On Circuit Breaker Off
02 - Disconnecting the Terminals
Just like shown in the video below, after turning off the circuit breaker, remove the terminals connected to the back of the Controller.
SmartConnect
Nexus
03 - Removing the Controller's Latches

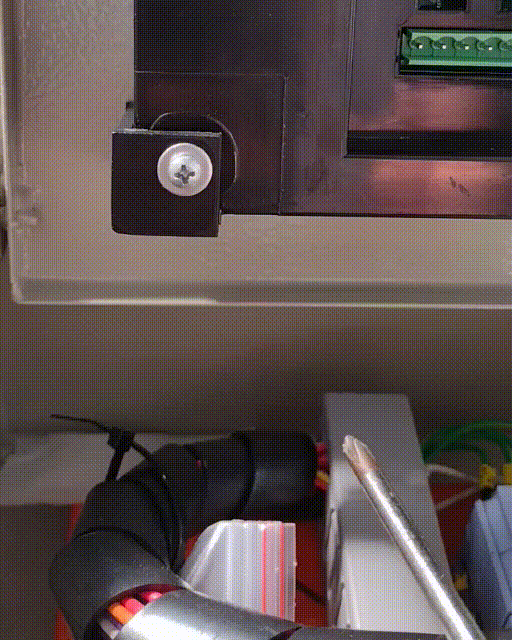

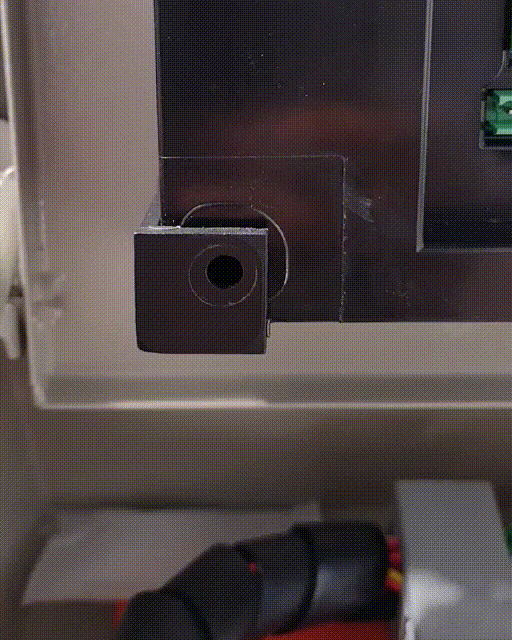

After disconnecting the Terminals from the Controller's cables, with the help of a Philips screwdriver, remove the four screws from the Controller's latches. And, next, remove the latches from it.
04 - Removing the Controller

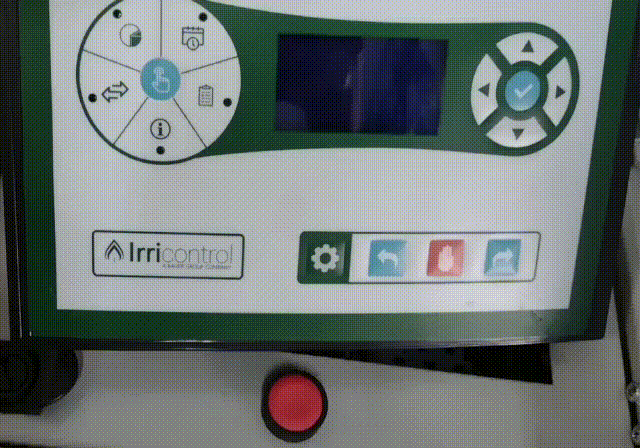

After completing the steps above, remove the Controller by pushing it, with the hand, from the inside out.
SmartConnect
Nexus
05 - Switching the Controllers

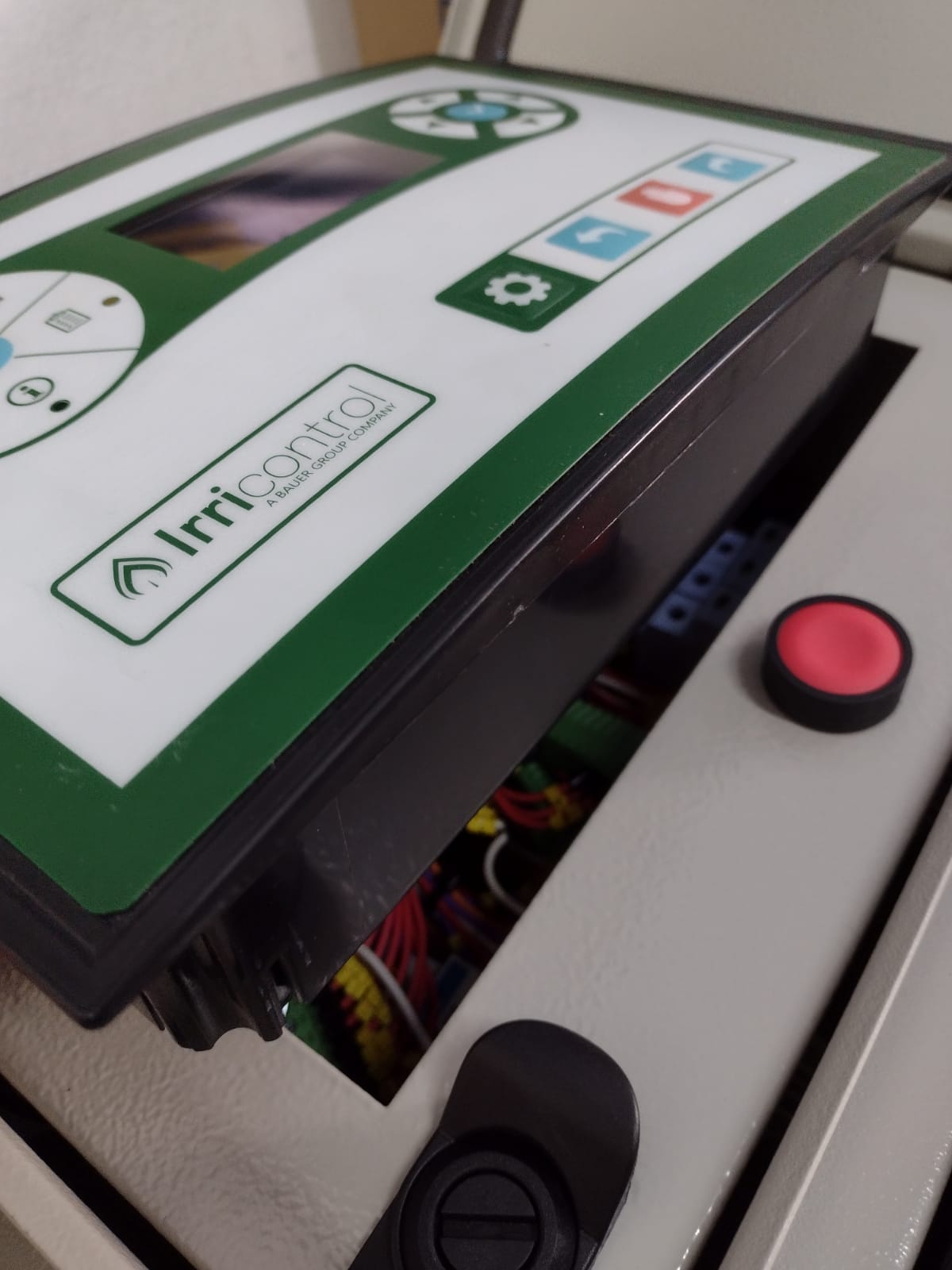

With the Controller of the other pivot in hands, put the new Controller in the same location as the other one was.
06 - Installing the New Controller
Follow the steps described in the article "How to install a Controller?" to know more.
