In Pivot Reports all pivot's operation data are presented. It shows the amount of hours worked in each time, total cost of the pivot in a specific period, the pivot's unexpected stops, voltages and pressures in the pivot, total amount of rainfall in a specific period, among other information.
To enable pivot reports, it is necessary to enable this option in the Edit Farm page, on the Pivot Reports tab. After that, for the reports to be correct, all pivot data must be entered correctly. In case of doubts on how to enable this option, take a look at the article "How to edit pivot's information?" to know more.
Specific Period

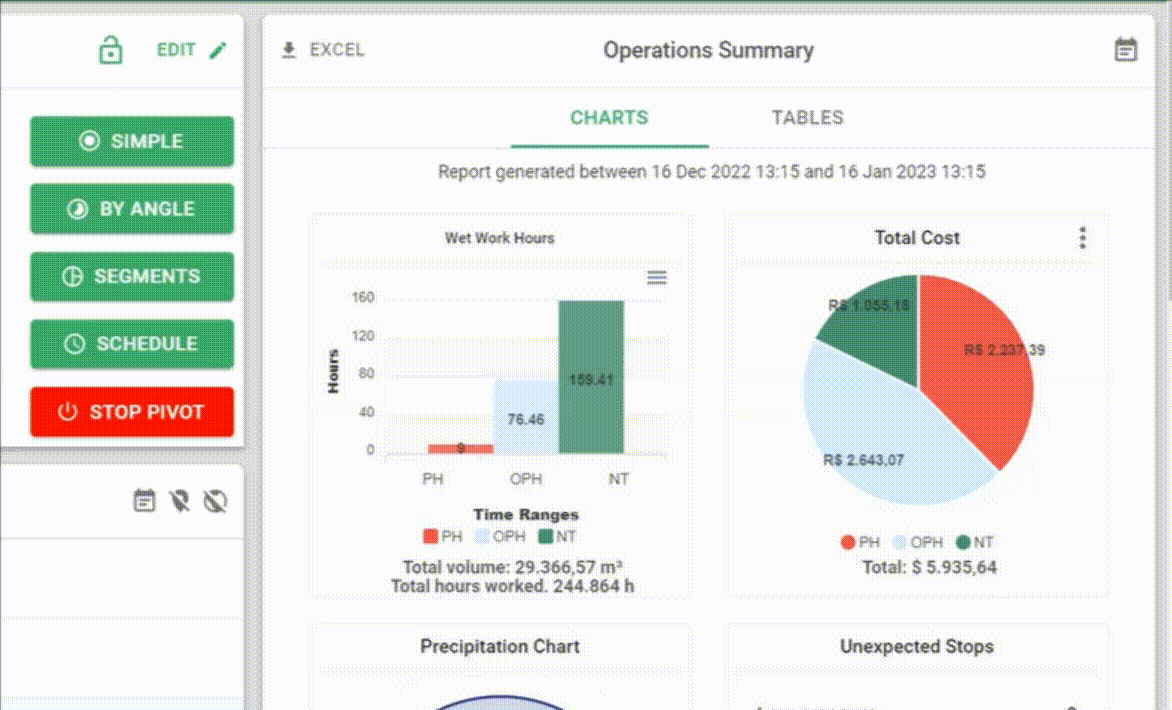

The established period is fundamental for showing the data in the time range in which you want to analyze the data. To configure it, just click on the icon at the top right of Operations Summary to edit it, as shown below.
Data Extraction
Click on the button to extract all the pivot reports data in an Excel spreadsheet.
Charts

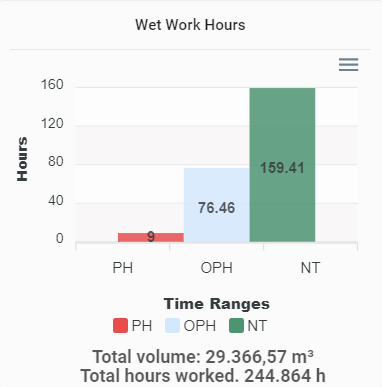

Wet Work Hours
This chart shows the amount of hours that the pivot worked wet during the periods previously configured in Edit Pivot (To know how to configure them, access the article "How to edit pivot's information?").
PH: Peak Hours
OPH: Off-Peak Hours
NT: Night Time

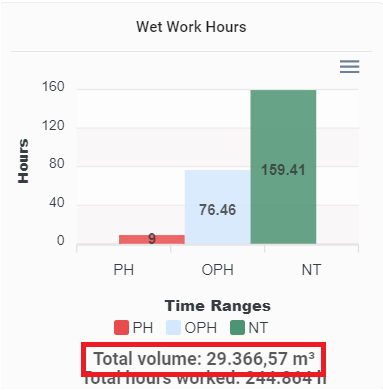

In addition, it is also possible to view the total amount of water used (m³) within the period specified in Total Volume.

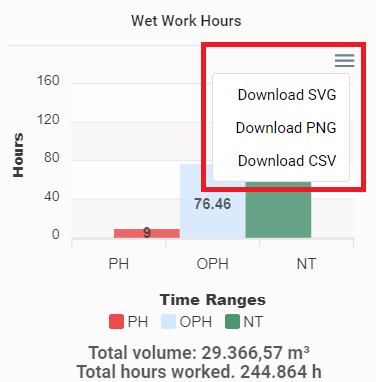

By clicking on the three dashes at the top of the chart (highlighted below), it is possible to download it in the SVG, PNG or CSV formats.
Total Cost

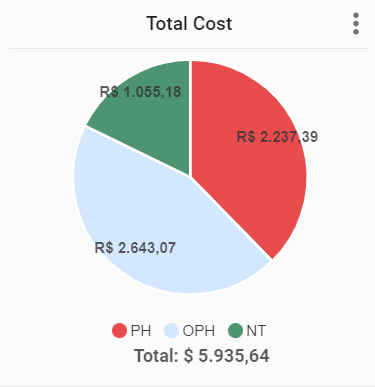

The Total Cost chart shows all expenses presented over the established period. In it, it is possible to check the costs for each time range: PH (Peak Hours), OPH (Off-Peak Hours) and NT (Night Time).
To define the cost per KWh established by the Concessionaire responsible for supplying energy on the platform, just follow the steps presented in the article "How to define the energy tariffs on Irricontrol Platform?".
Precipitation Chart

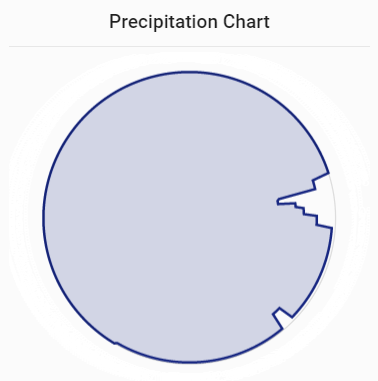

In the precipitation chart, it is possible to view, during the specified period, how the pivot irrigated along the entire pivot's work range.

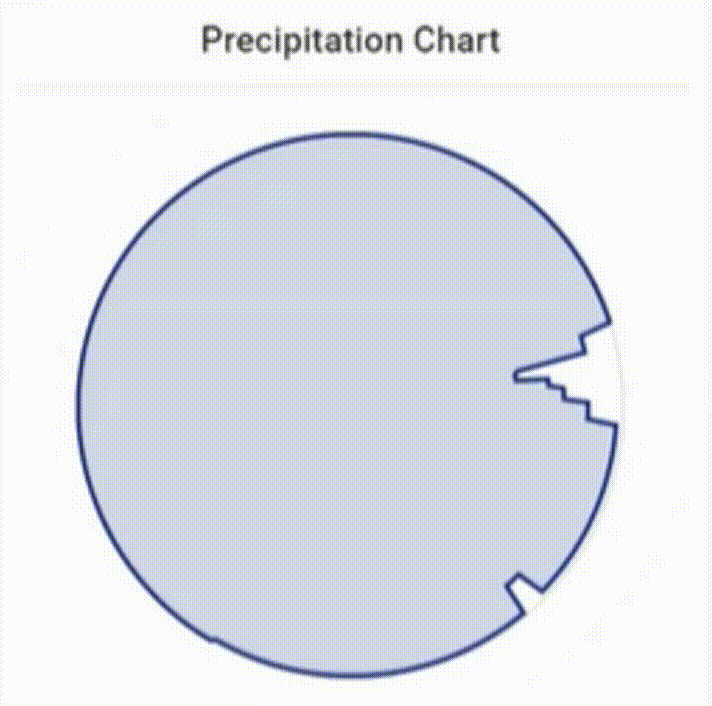

Moving the cursor over the points in the chart, it is possible to see the angle and the water blade applied during the specified period.

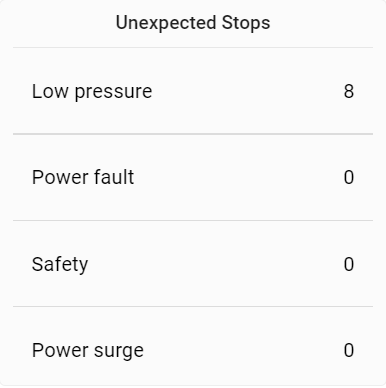

Unexpected Stops
In this item it is possible to view the errors presented by the evaluated pivot over the specified period. It shows low pressure, power fault, safety and power surge errors.

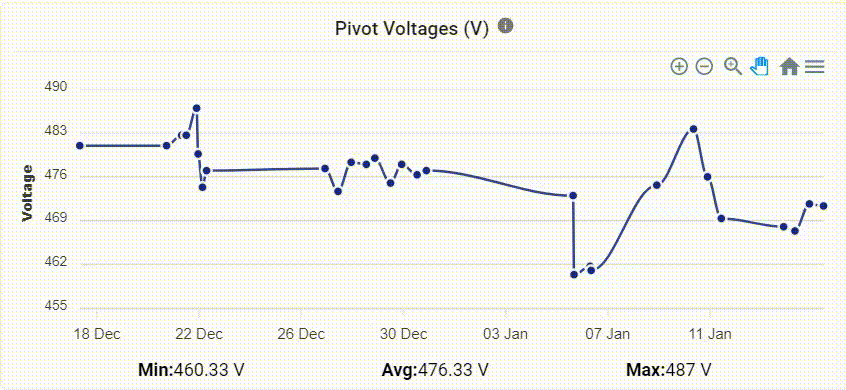

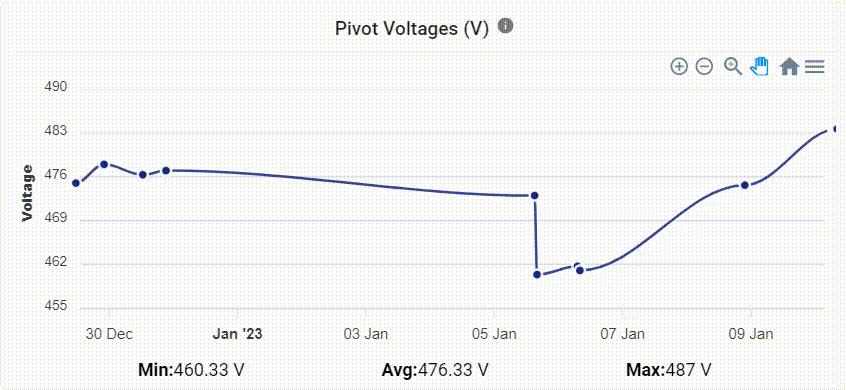

Pivot Voltages (V)

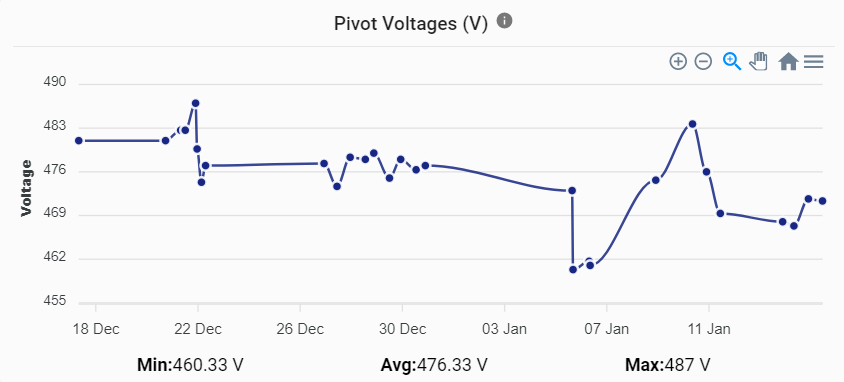

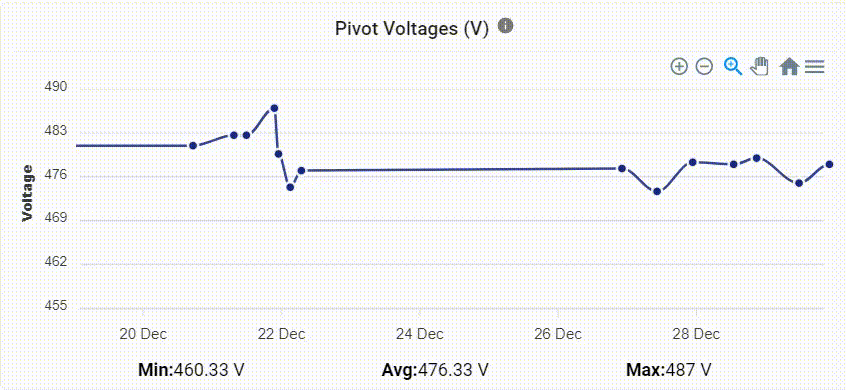

In the Pivot Voltages chart, it is possible to view how the power supplied by the hired Energy Concessionaire is. In case there are sudden voltage oscillations, it will be shown on the chart.

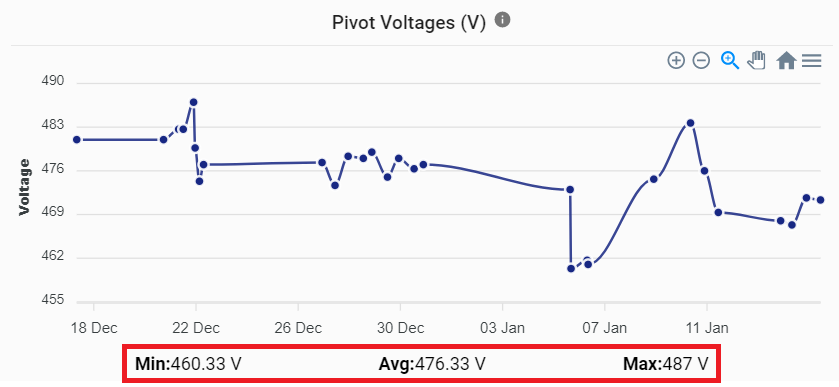

In the chart's bottom, it is possible to see the minimum, average and maximum voltages during the specified period.
In addition, at the chart's top it is possible to handle the functionalities in the chart. Access the item Charts Commands from this article to know more.

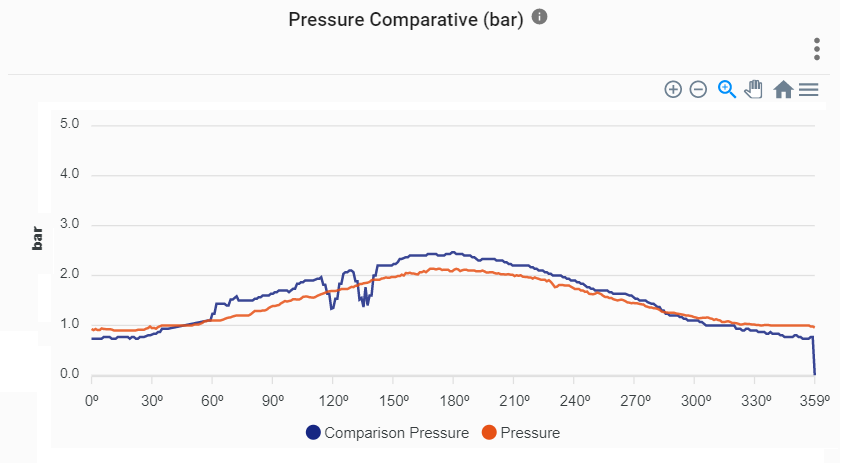

Pressure Comparative (bar)
In the Pressure Comparative chart, it is possible to view the pressure (in bar) in the pivot's last tower by angle during the entire work range when it has a pressure sensor. Beyond that, the chart compares the most recent data (last 1080 GPS answers within the period specified in the upper right corner of the chart) with the data older than the period specified at the three dots in the upper right corner (1080 GPS answers older than the specified period).
Clicking on the three dots at the top right corner, it is possible to change the date and time of comparison for the chart.

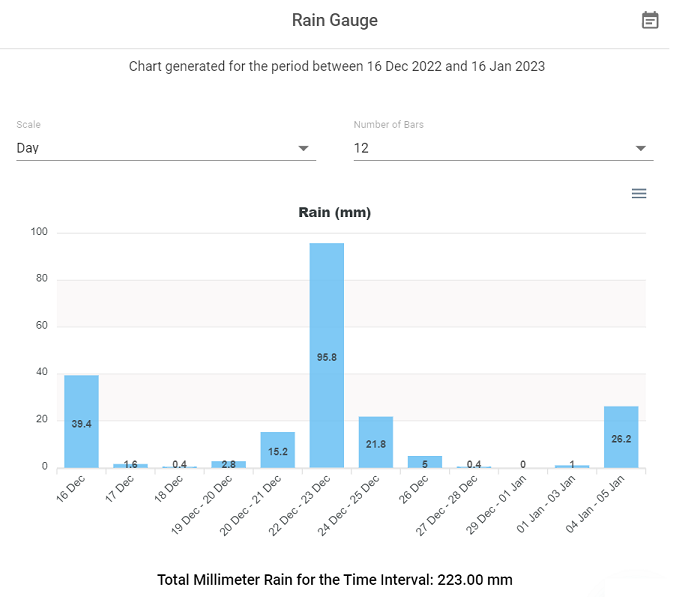

Rain Gauge
The Rain Gauge chart shows the amount of millimeters of rain in a specific date and the total amount of millimeters over the same period.

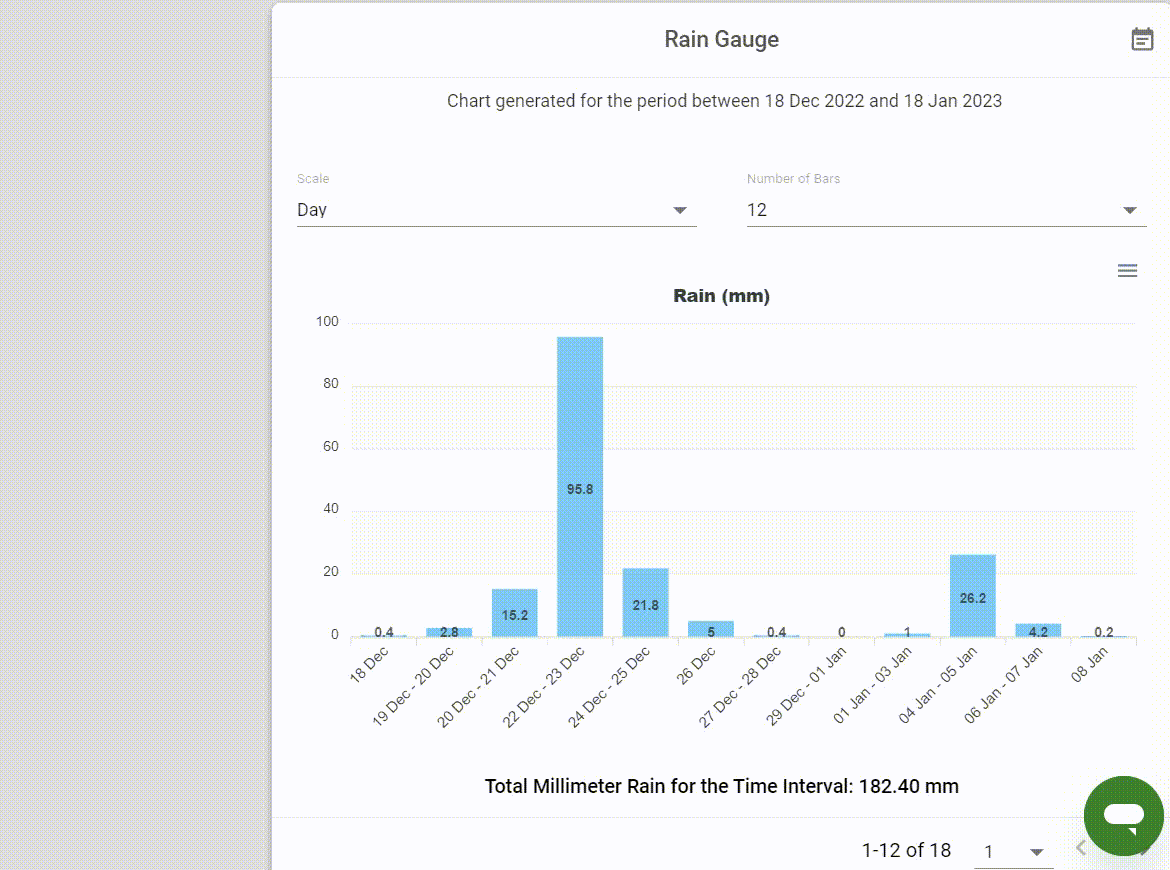

In this chart, it is possible to change the scale between Day, Week and Month. Also, it is possible to change the date range and the number of bars in which you want the data to appear.
By clicking on the three dashes at the chart's top right, it is possible to download the chart data in SVG, PNG or CSV formats, just as the Charts Commands topic of this article discusses.
Note: The Rain Gauge will only present the data when Nexus Panel or SmartConnect is powered up. However, the rain gauge will be counting all millimeters of rain during the period normally. When the Panel is powered up again, the data are presented referring to the days that it was turned off.
For example: If on the 24th day the Panel is turned off and on the 25th the power returns, the 25th day will show the rain data referring to both days 24 and 25, as shown below.
Charts Commands
In the top part of some charts it is possible to manage its functionalities. Here are the meanings and functions of each button.
With these buttons it is possible to zoom in and out on the chart.
________________________________________________
With this button it is possible to select a specific area to analyze.
________________________________________________
With the zoom activated, or with a selected area, it is possible to move along the chart area with this button activated.
________________________________________________
With this button, the view returns to its initial settings.
________________________________________________
With this button it is possible to download the chart's data in SVG, PNG and CSV.
Tables

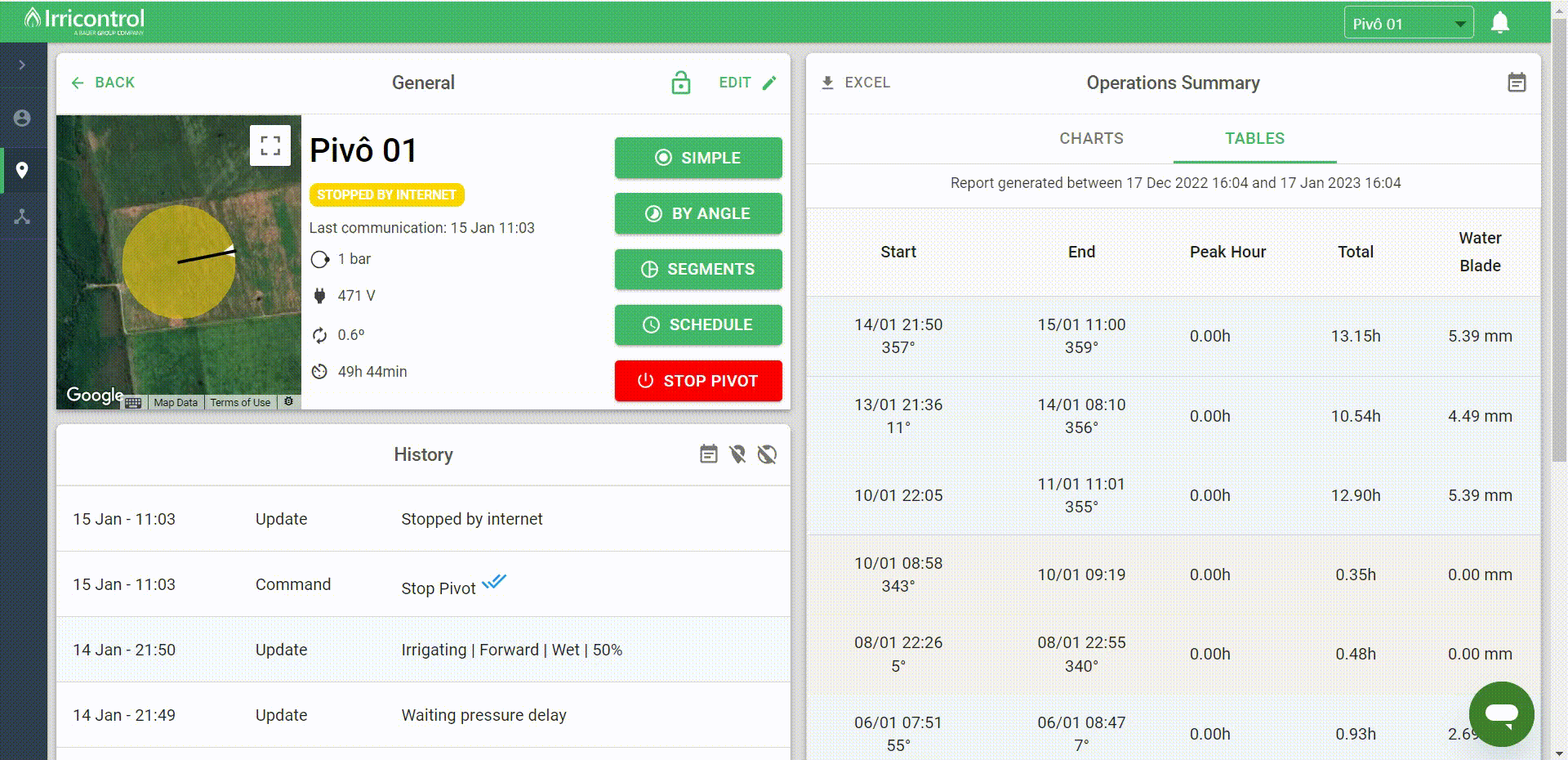

By clicking on the Tables section at the top of the page, it is possible to have a summary of all operations over the selected period. For each command sent to the pivot, it is possible to know the initial date and time with the start angle, the end date and time of the pivot movement with the final angle, how long the pivot operated at peak hour, the total hours of operation and the water blade used.
You can still check all GPS answers (responsible for sending the last tower's position) by clicking on any spot of the Table. In this tab it is possible to view date and time of the received position, the pivot's angle, geographic coordinates showing where the pivot is, direction, precipitation, status, the pressure in the last tower and the counting of minutes in the hourmeter.
