In the Panel's analog version, the controller is disabled and the use of the buttons on the box lid is enabled.

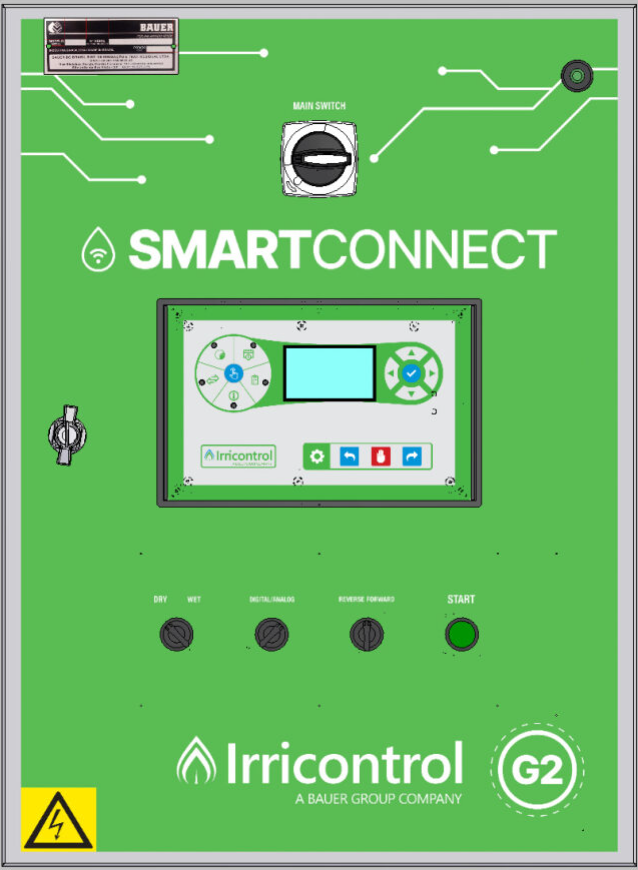

To turn on the pivot in analog mode for the first time, turn the digital/analog switch to analog position. Choose the operating mode (wet or dry) and the direction (forward or reverse). And finally, press the button "start".
In addition, here, there's also a way of turning the pivot on through the pressure switch. To do this, turn the digital/analog switch to analog position, choose the operating mode (wet or dry) and the direction (forward or reverse). After that, for the pivot to start moving all it takes is activating the pressure switch.
To facilitate the understanding of the operation, we have divided the Panel in 3 parts plus the electrical diagram. To enable english subtitles in the videos, click on the icon .
Part 1
These are the components located at the top of the panel, responsible for controlling and protecting the power part. As they work with high power, usually 480 VAC, it is necessary to be careful and make sure that the power is always off when handling them.
Part 2
These are the components located at the central part of the panel, responsible for the control and the logic of the pivot's functioning, which we call the command part.
In this part, it is located the device called "percentimeter", responsible for adjusting the time in which the pivot's last tower will be on and off within one minute. A percentimeter at 50%, for example, keeps the last tower turned on for 30 seconds and turned off for 30 seconds.
Part 3
These are the components located at the bottom of the panel. They are mostly responsible for the connections of the power cables and also the pivot.
