How to install IRRIPUMP?

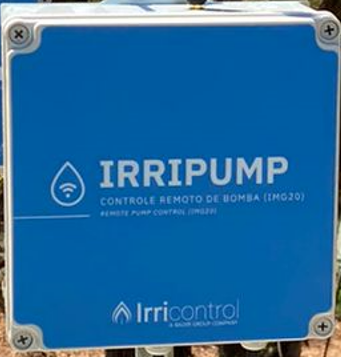

Irripump is the product used to remotely operate and monitor pumps through the Irricontrol Platform.



1 - Product Components

Before starting the installation, make sure all items are included in the product box before heading to the field, as shown below. The components of the Irripump are:

1. 01 Irripump;

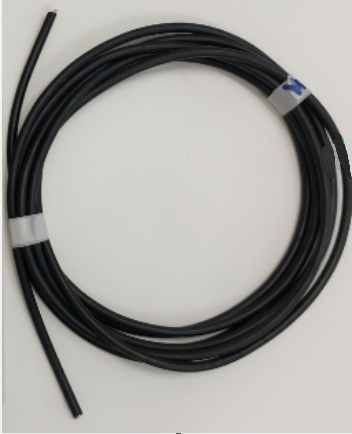

2. 01 6-way cables;

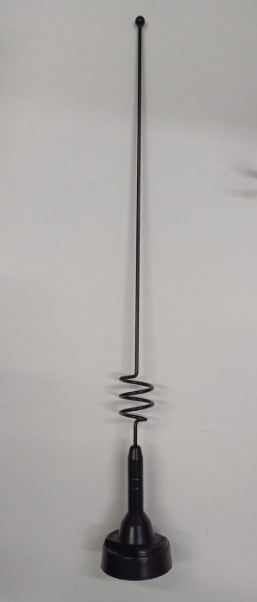

3. 01 Antenna AP3900;

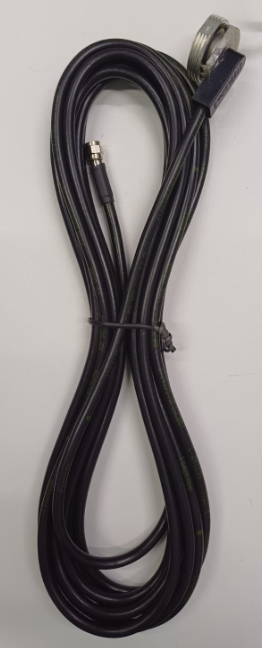

4. 01 Axial cable for 5M 95% Antenna;

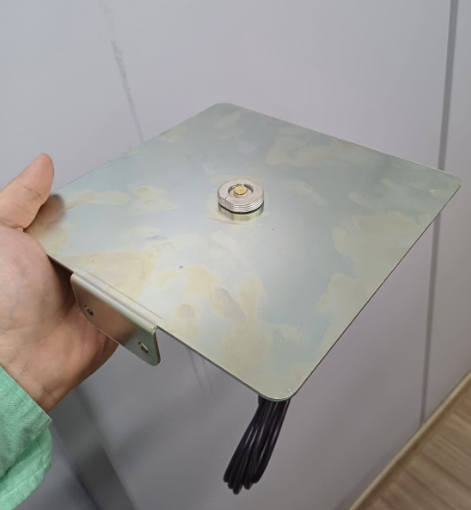

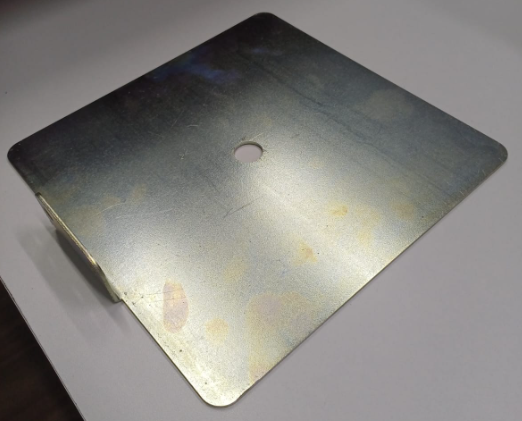

5. 01 Antenna mount;

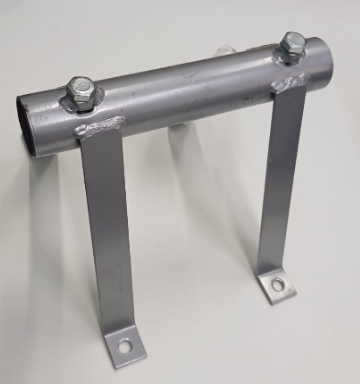

6. Support:

• 01 Wall support;

• 04 Philips screws 4.8x45mm for 8mm wall plugs;

• 04 8mm wall plugs;

• 01 Tube;

• 01 "U" clamps;

• 02 Hex head screws M8x15mm;

2 - Mechanical Installation of the IRRIPUMP

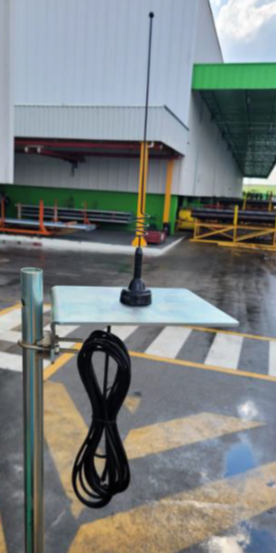

To install the Irripump mount, simply follow the step-by-step instructions below, securing the mount at the location pre-defined in the project:

1. Drill the holes in the wall using the mount as a template and insert the four 8mm wall plugs;

2. Secure the mount in place using the four Philips screws for 8mm plugs;

3. Attach the tube to the mount and fasten it with the M8x15mm screws;

4. Use the axial cable and connect it to the antenna mount;

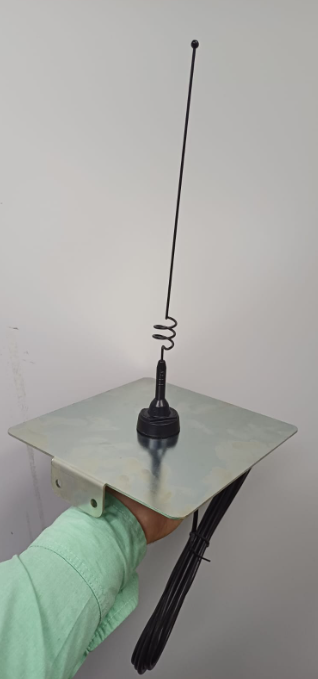

5. Attach the AP3900 antenna to the axial cable;

6. Add the "U" clamps and secure the mount to the tube.

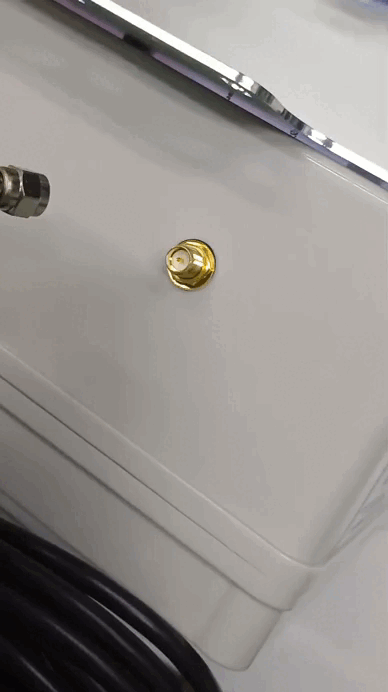

7. And connect the other end of the cable to the top part of the Irripump.

8. In a protected location, drill holes in the wall following the existing mounts on the equipment and secure it with screws and wall plugs.



3 - Electrical Installation of the IRRIPUMP

Communication Cables:

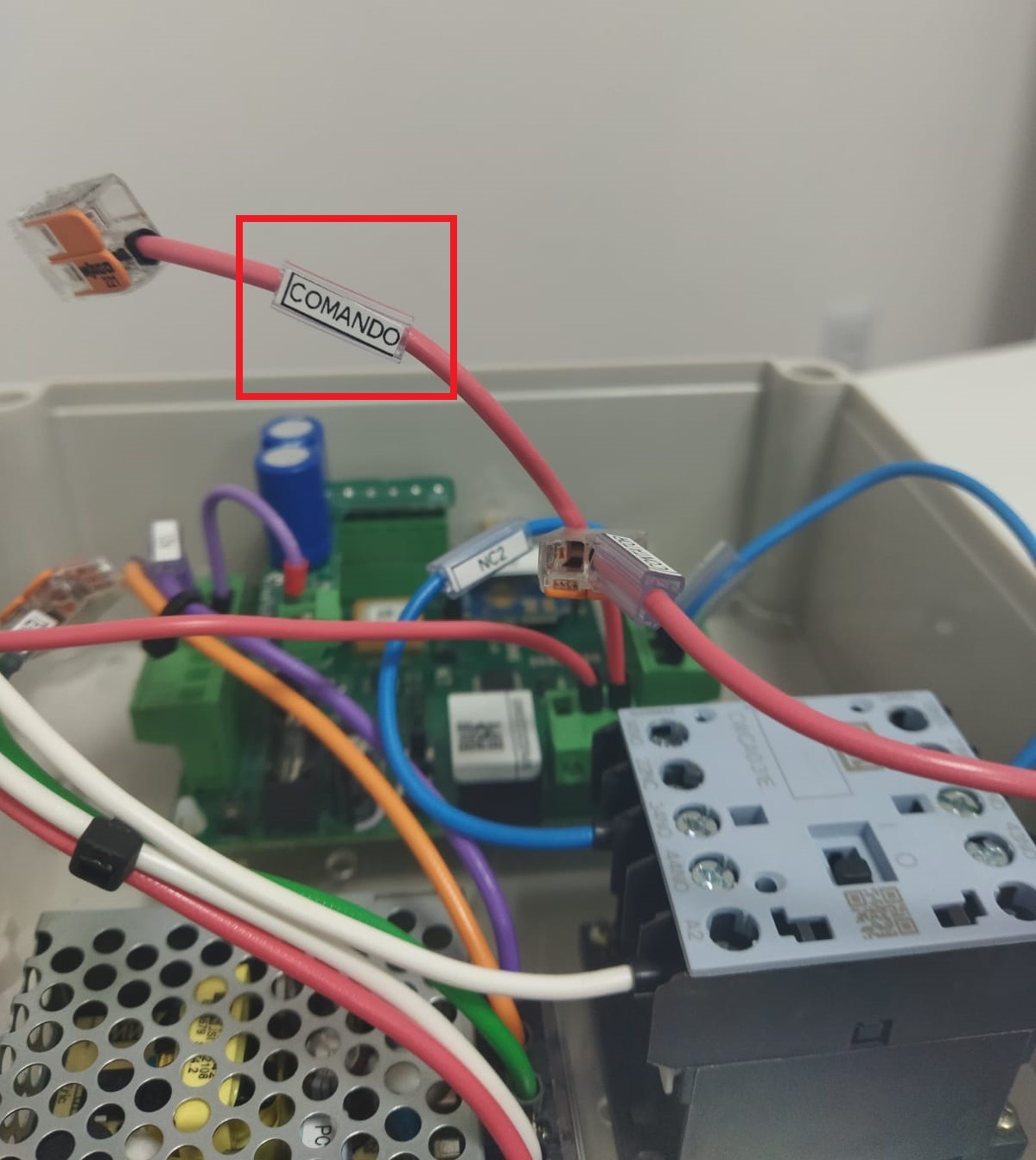

COMMAND Cable: Responsible for sending a command to the contactor that activates the pump from the pump's Starter Panel.

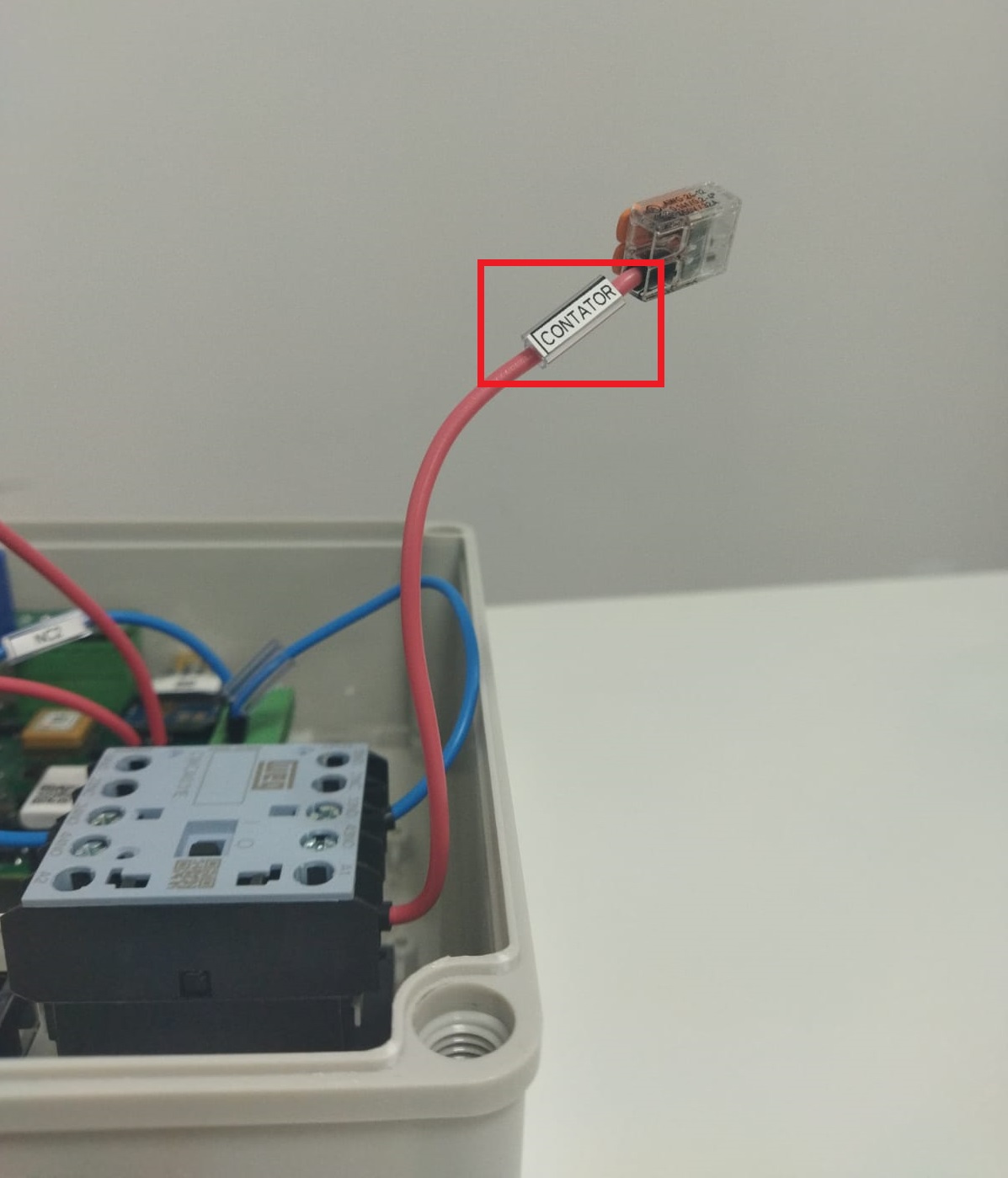

CONTACTOR Cable: Responsible for receiving a signal from the pump's Starter Panel (confirming that the pump has been turned on), activating the internal contactor of the Irripump.

Power Cables:

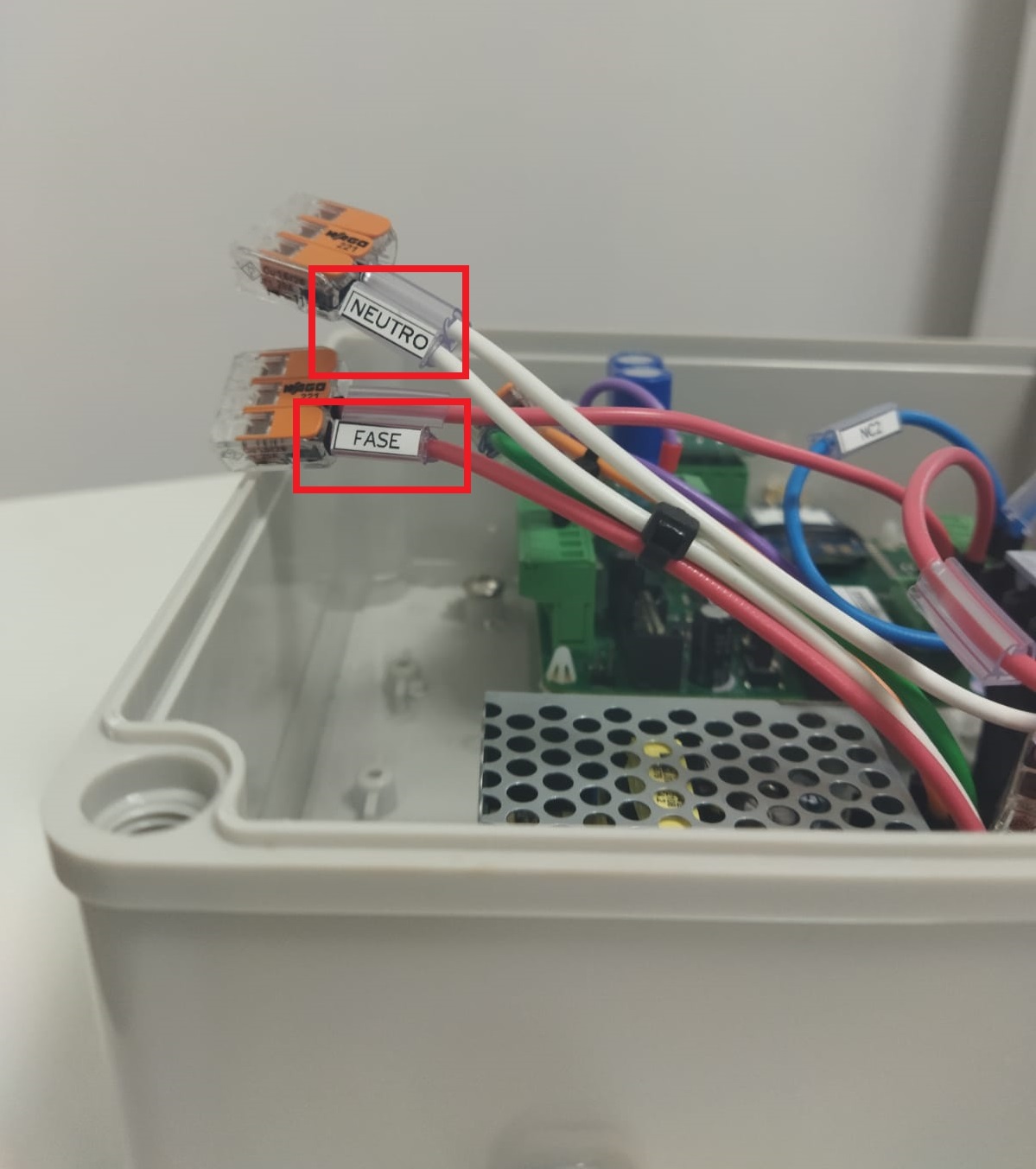

The cables identified as PHASE and NEUTRAL must remain connected so that the radio is always on and ready to receive pump activation commands.

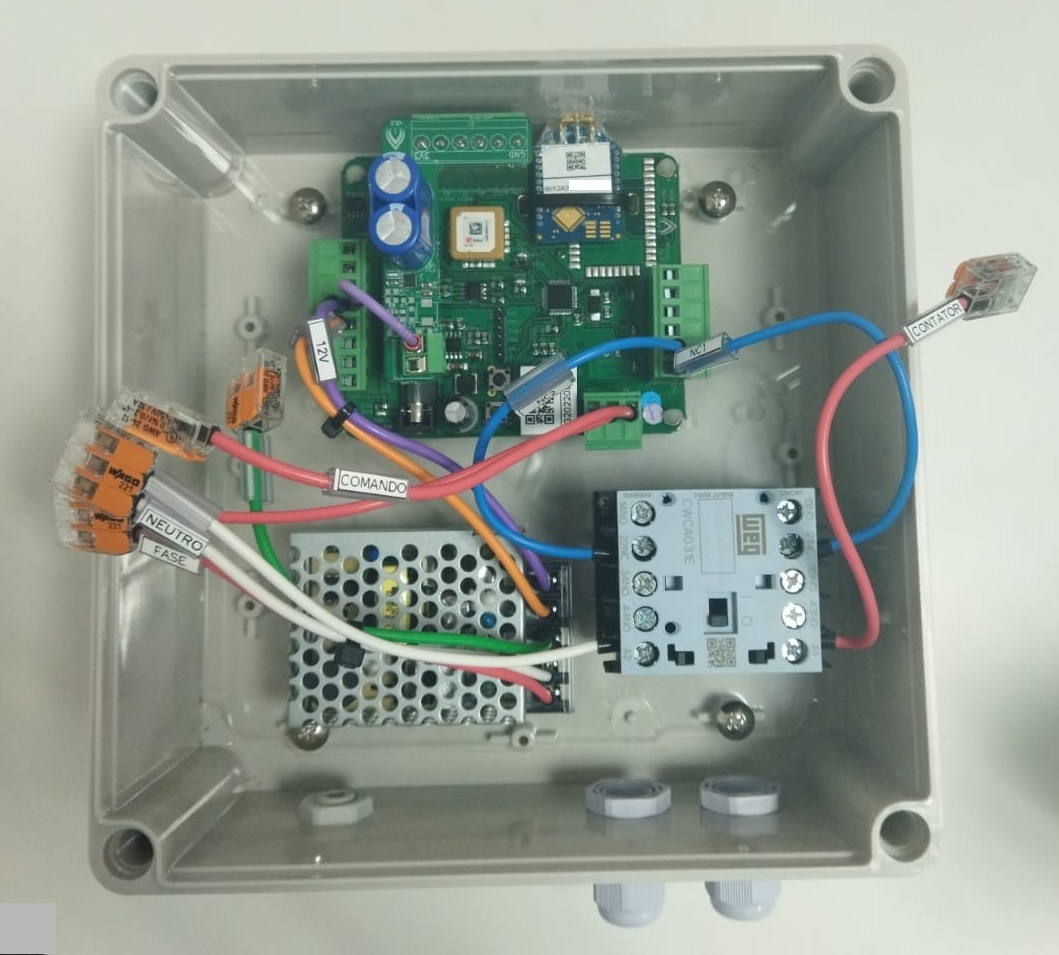

The Irripump sends a signal to activate the pump start contactor and receives a signal that engages its internal contactor. Thus, make the following cable connections:

Connection at the Starter Panel

With the panel power turned off, make the following connections on the starter panel terminal block:

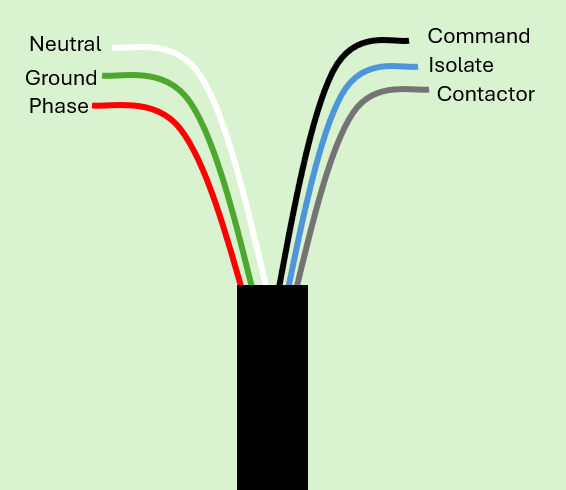

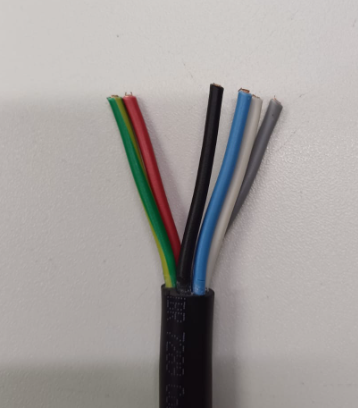

• Connect the RED wire of the 6-way PP to a phase point of the panel after the protection;

• Connect the WHITE wire to a neutral point of the panel after the protection;

• Connect the BLACK wire to a contactor responsible for controlling the pumping;

• Connect the GRAY wire to a point that contains power after the pumping is in operation;

• Connect the GREEN wire to a grounding point;

• Insulate the BLUE wire.

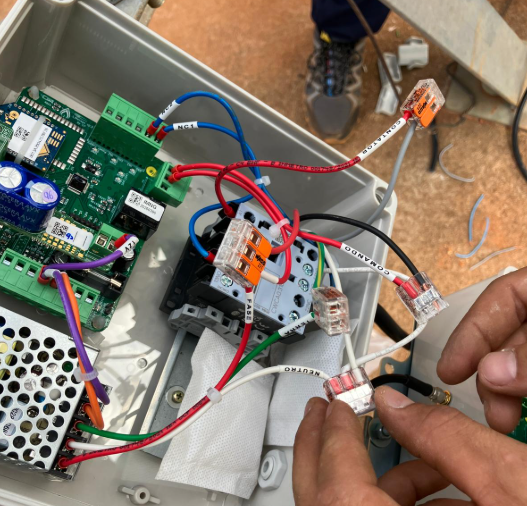

Connection on the Equipment

• Connect the RED wire to the PHASE of the power supply and the WHITE wire to the NEUTRAL of the power supply;

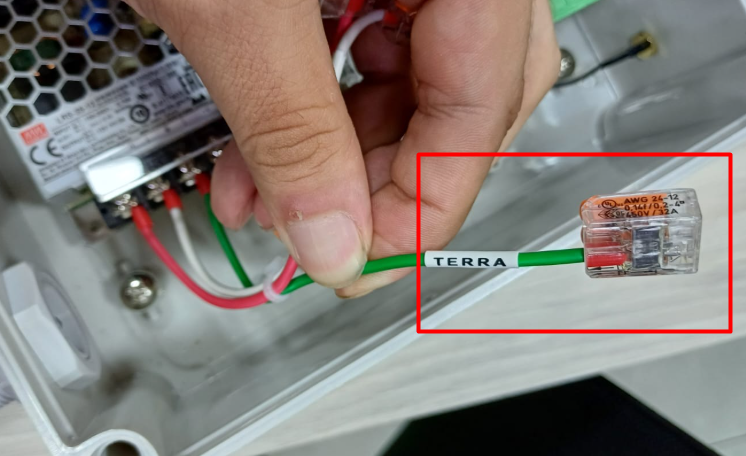

• Connect the GREEN wire to GROUND and insulate the BLUE wire.

• Connect the BLACK wire to the wire identified as COMMAND and the GRAY wire to the wire identified as CONTACTOR;

• On the panel, select the remote option.

Expected standardization:

Radio Number:

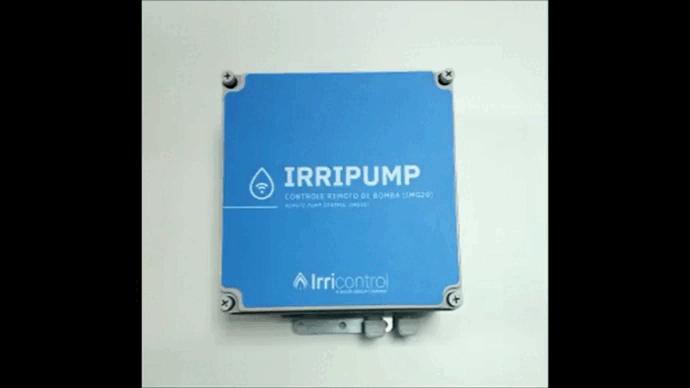

Inside the box, there is a sequence of radio numbers that must be saved in order to register it on the platform. The video below shows how to find this number on the equipment.

Completion

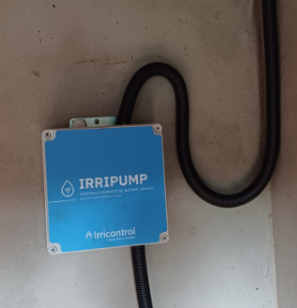

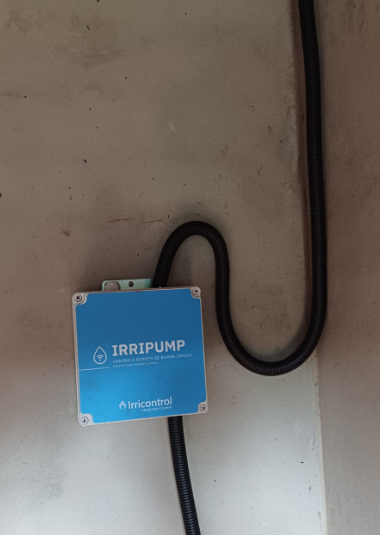

Note: This Irripump is mounted on the wall with its wiring protected by a flexible conduit, and the antenna is installed on the exterior area of the pump house.
