The SPOTi is the product that replaces the pumping command cable when Irricontrol control panels with automation are already installed.
1 - Product Components
Before starting the installation, make sure all items are inside the product box before going to the field, as shown below. The SPOTi components are:

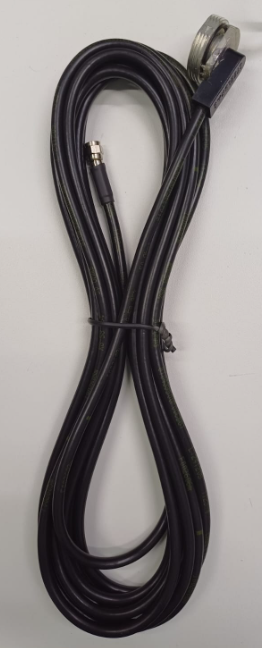

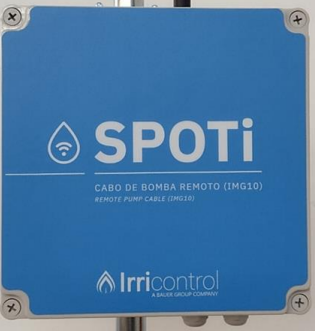

1. 01 SPOTi;

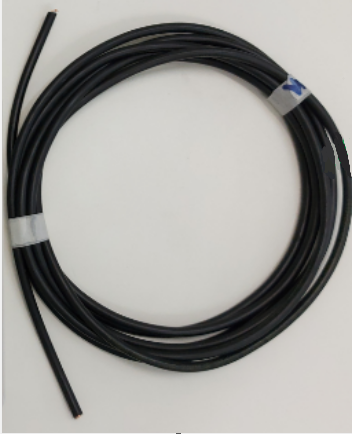

2. 01 6-way Cable;

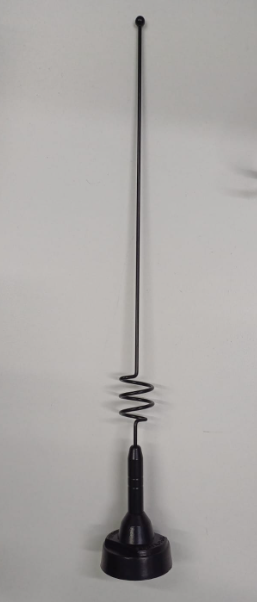

3. 01 AP3900 Antenna;
4. 01 Axial Antenna Cable 5M 95%;

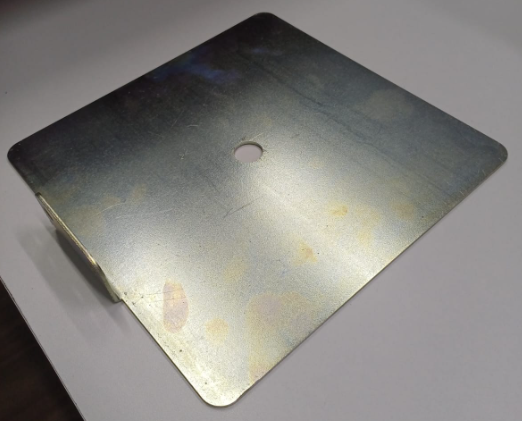

5. 01 Antenna Support;
6. Support:
- 01 Wall Support;
- 04 Philips Screws 4.8x45mm for plug size 8;
- 04 Plugs size 8;
- 01Tube;
- 02 “U” Clamps;
- 02 Hexagonal Screws M8x15mm.

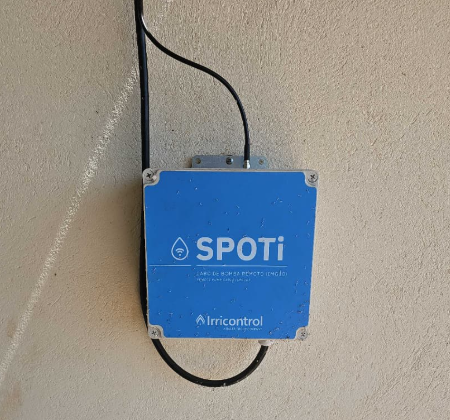

2 - Mechanical Installation of SPOTi
To install the SPOTi support, simply follow the steps below, fixing the support at the location defined in the project.
1. Drill the wall holes using the support as a template and insert the 04 plugs size 8;
2. Fix the support in place with the 04 Philips screws for plug size 8;
3. Attach the tube to the support and fix it with the M8x15mm screws;

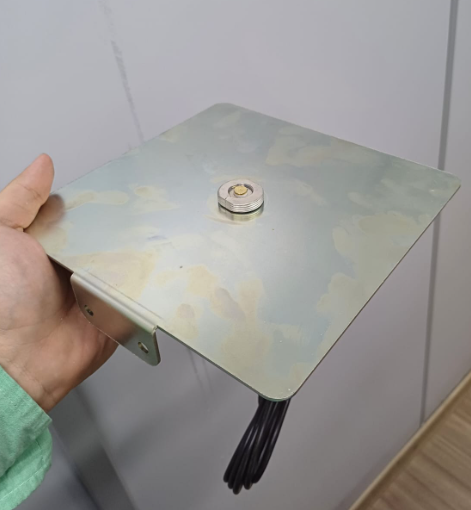

4. Use the axial cable and connect it to the antenna support;

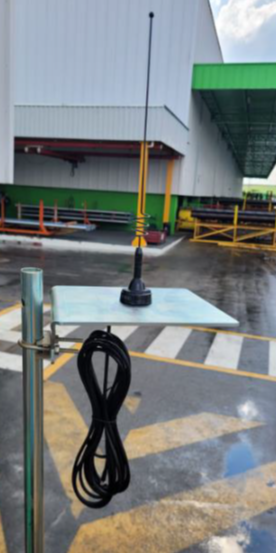

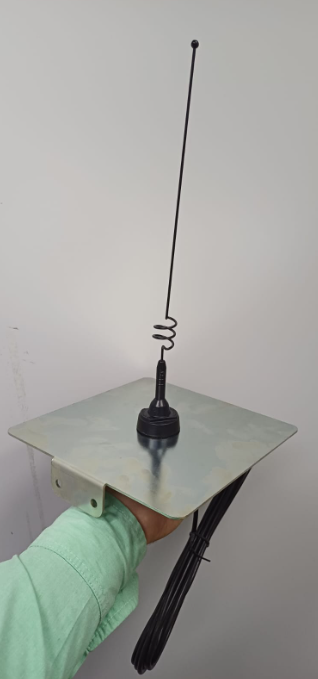

5. Fix the AP3900 antenna to the axial cable;
6. Insert the “U” clamps and attach the support to the tube;

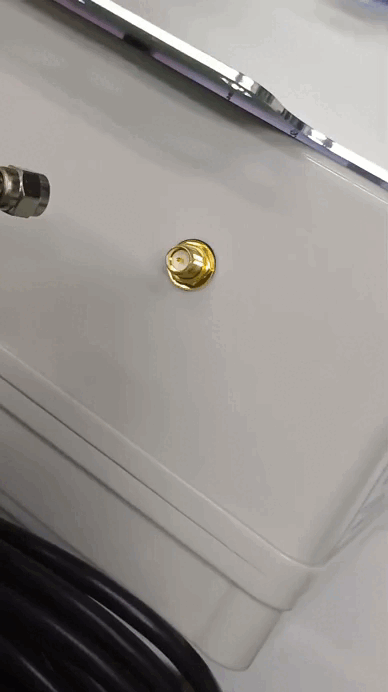

7. Connect the other end of the cable to the top of the SPOTi;
8. In a protected location, drill the wall using the existing equipment supports as a template and fix it with screws and plugs.
3 - Electrical Installation of SPOTi
Command Cables:
COMMAND Cable: Responsible for sending a signal to a contactor that activates the pump through the pump Starter Panel..
Power Cables:
The cables identified as PHASE and NEUTRAL must remain connected so that the radio is always powered and ready to receive pump activation commands.
The SPOTi sends a signal to activate a pump starter contactor. Therefore, make the following cable connections:
- Connection at the Starter Panel
With the panel power turned off, make the following connections at the terminal strip of the pump Starter Panel:
-

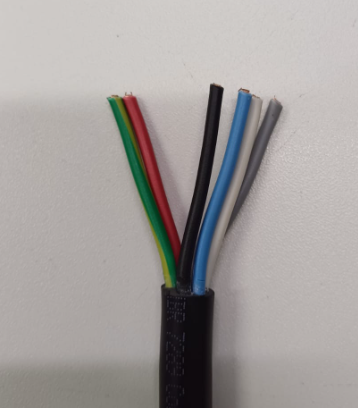

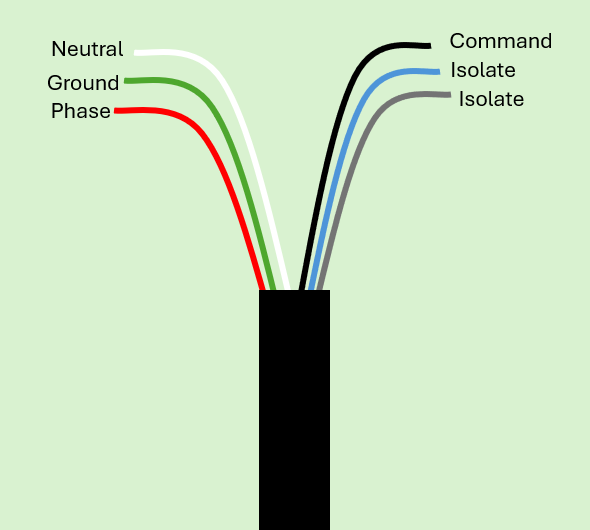

Connect the RED wire from the 6-way PP cable to a phase point on the panel after the protection;
-
Connect the WHITE wire to a neutral point on the panel after the protection;
-
Connect the GREEN wire to a grounding point;
-
Connect the BLACK wire to a contactor responsible for controlling the pumping;
-
Isolate the GRAY wire;
-
Isolate the BLUE wire.
-

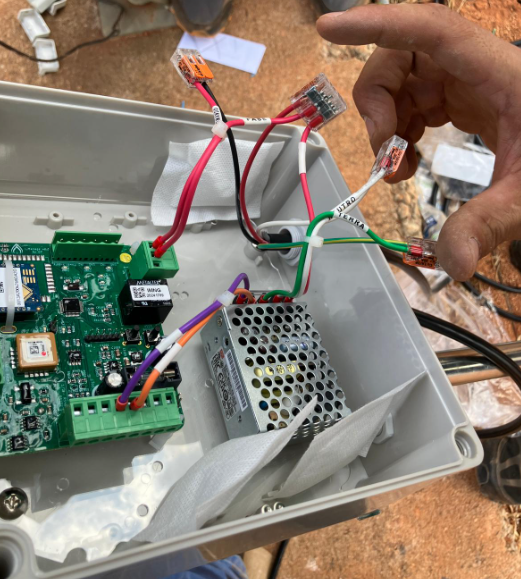

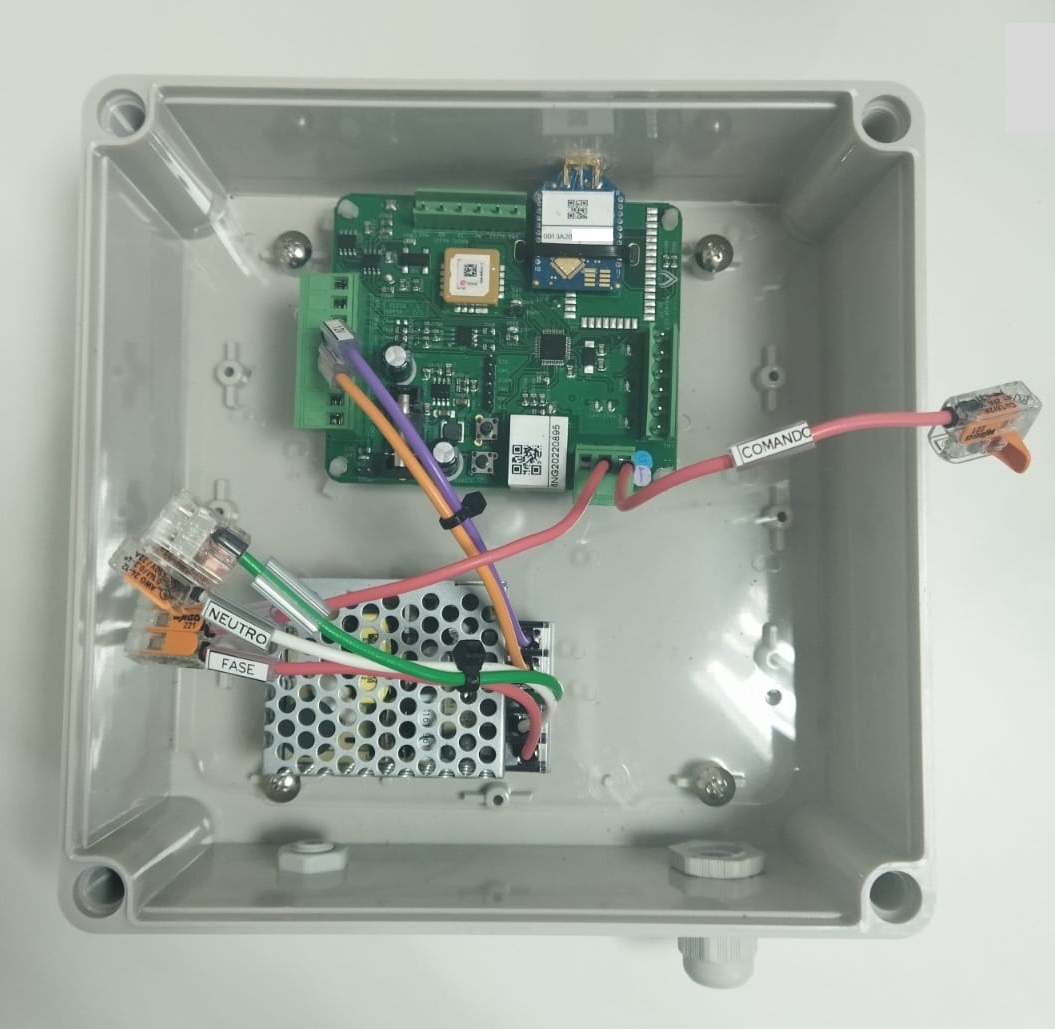

- Connection at the Equipment

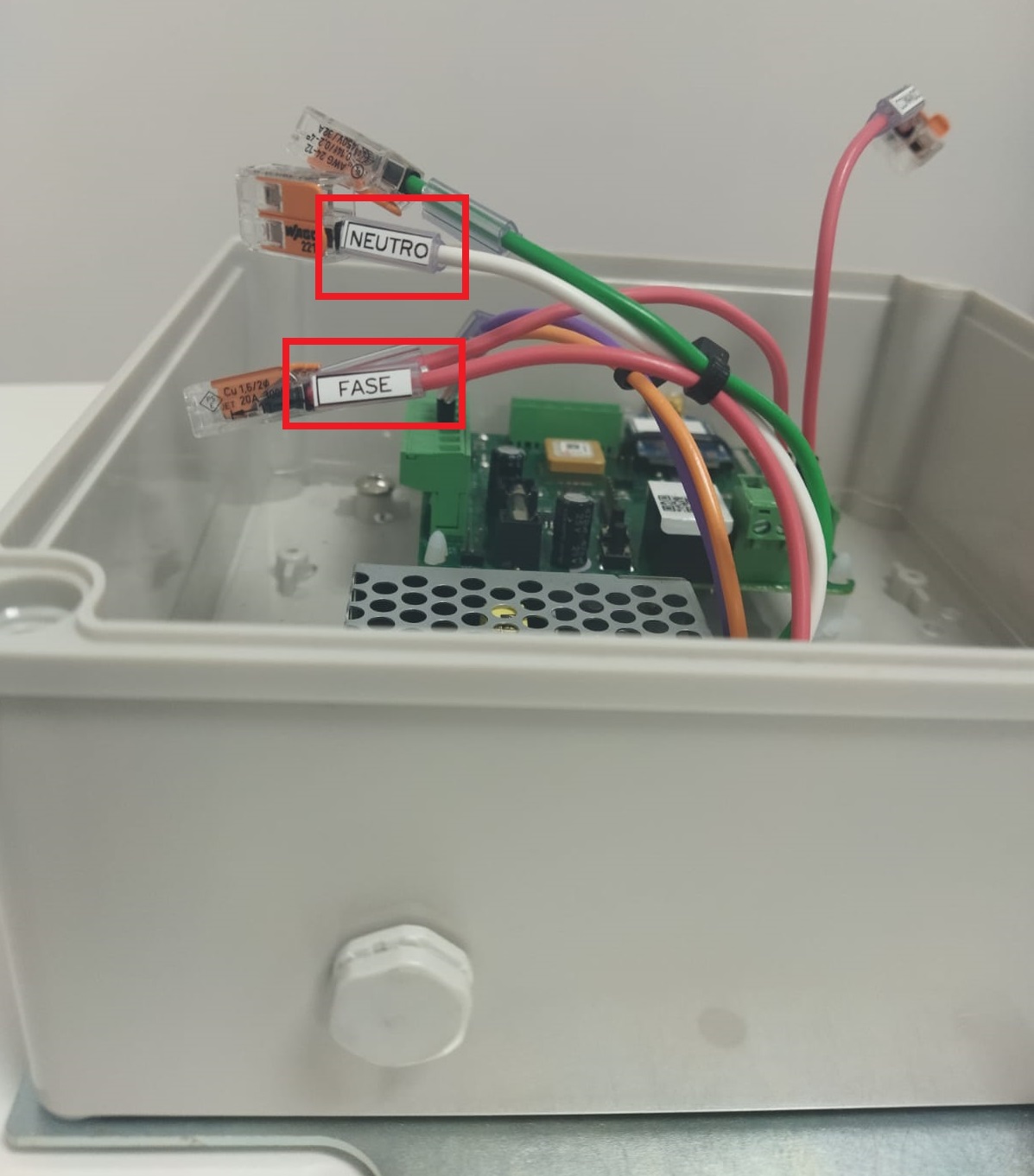

- Connect the RED wire to the power supply PHASE and the WHITE wire to the power supply NEUTRAL;

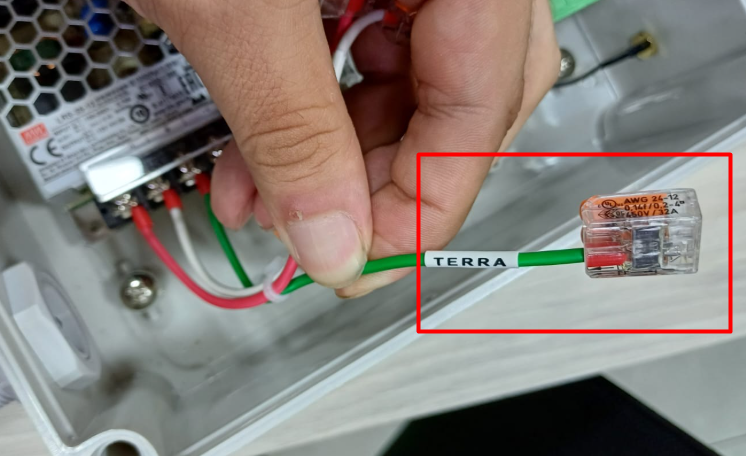

- Connect the GREEN wire to GROUND and isolate the BLUE wire;

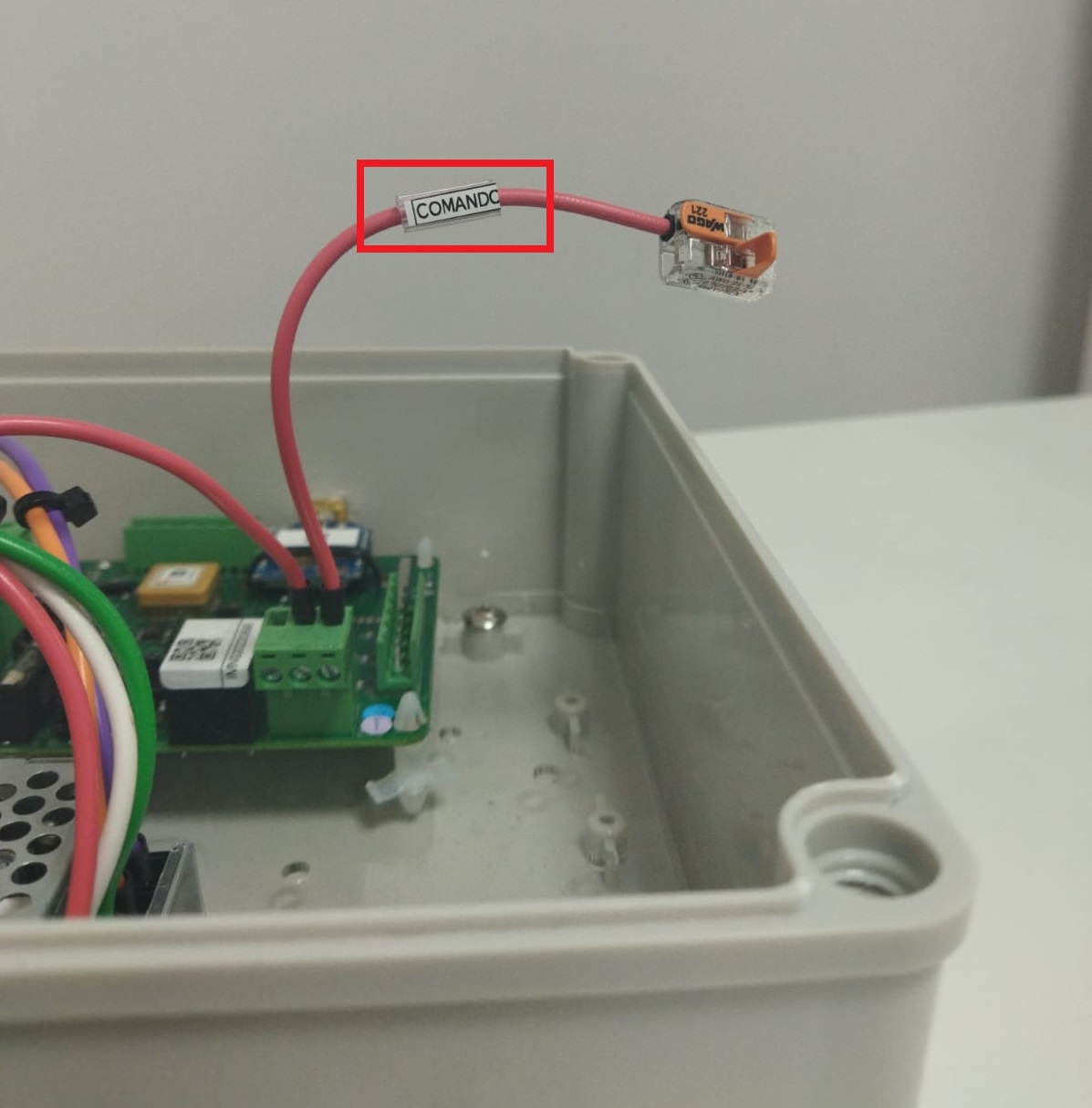

- Connect the BLACK wire to the wire identified as COMMAND and isolate the GRAY wire.
On the panel: Set the door selector switch to the “remote” option.
Expected Standardization:

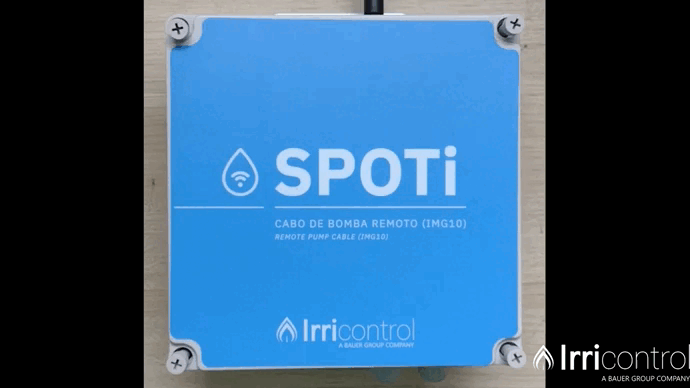

Radio Number
Inside the box, there is a sequence of Radio numbers that must be saved so they can be registered on the platform.
Finalization
